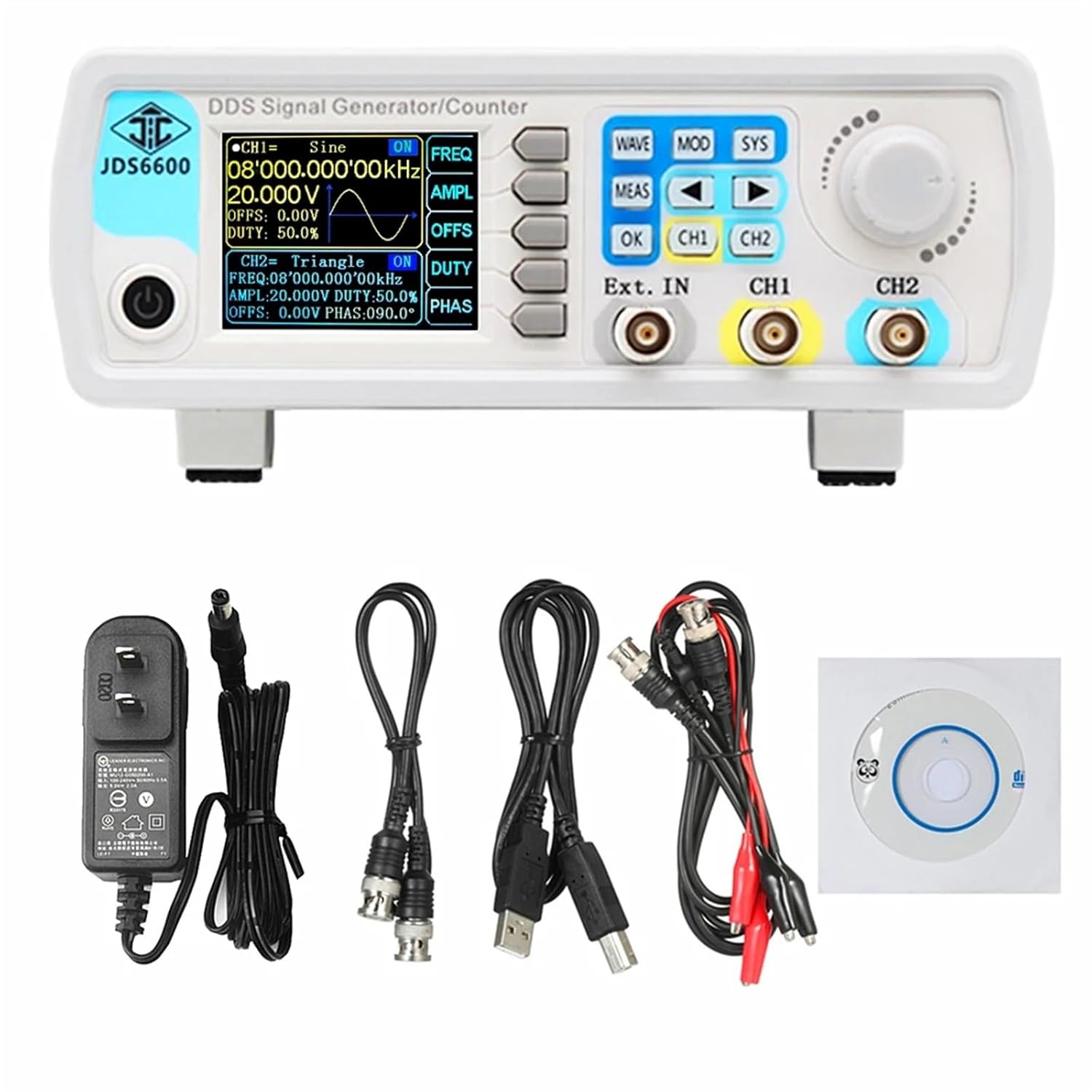

JDS6600 15/30/40/50/60MHz DDS Function Signal Generator/Source Dual/2-CH Frequency Meter Arbitrary Waveform Pulse Generator (Color : 40MHz, Size : EU)

Oscilloscope Probes320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2.Ability to reproduce patterns of custom waveform.Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits.Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.With digital signal output function, CMOS output range 010V.266MSa/s sampling rate and 14bits vertical resolution.Equivalent performance-phase difference 360 adjustable.Equivalent performance dual channels can simultaneously output the same or different function signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels is adjustable from 0-359.9 .Trigger functions-Four trigger modes.You can use sine wave, square wave, saw-toothwave or arbitrary wave to generate pulse train. The number of pulse periods is adjustable between 0-1048575.Pulse width-precisely adjustable.With independent operation interface, the function is clear; with independent control switch, it is convenient to control. Adjustment range: 25ns-4000s; pulse offset adjustable between 0% -120%; pulse amplitude can adjust between 0-10V, and be accurate to 0.01V.ModelJDS6600-15MJDS6600-30MJDS6600-40MJDS6600-50MJDS6600-60MSine wave frequency0-15MHz0-30MHz0-40MHz0-50MHz0-60MHzSquare wavefrequency015MHz0-25MHz0-25MHz0-25MHz0-25MHzTriangle wavefrequency015MHz0-25MHz0-25MHz0-25MHz0-25MHzPulse width adjustment100nS4000S50nS4000S40nS4000S30nS4000S25nS4000SRise/Fall Time25ns15ns10ns10ns10nsFrequency resolution0.01uHz(0.00000001Hz)Sampling Rate266MSa/s
